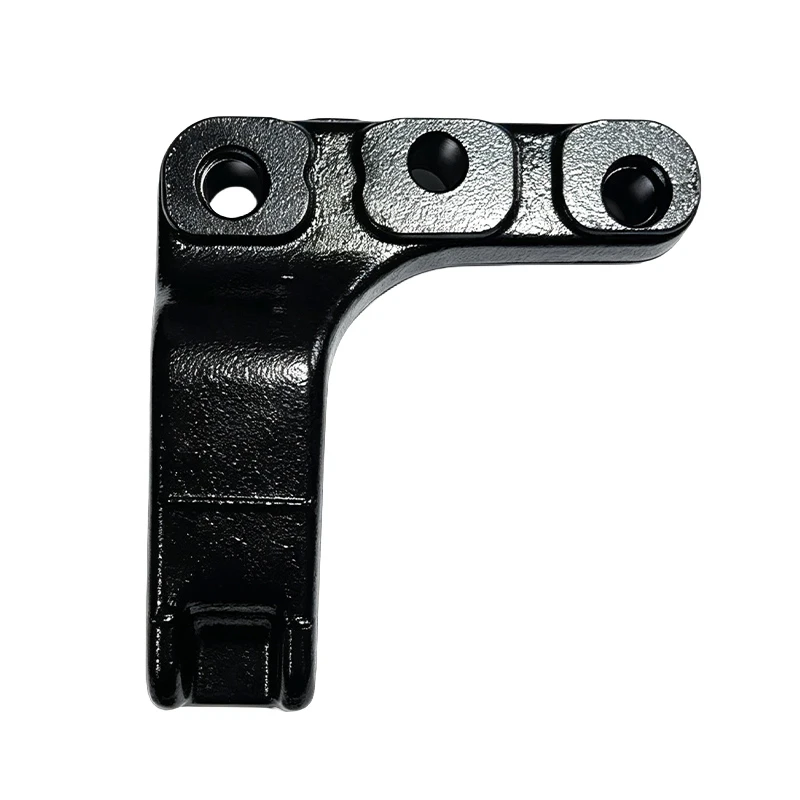

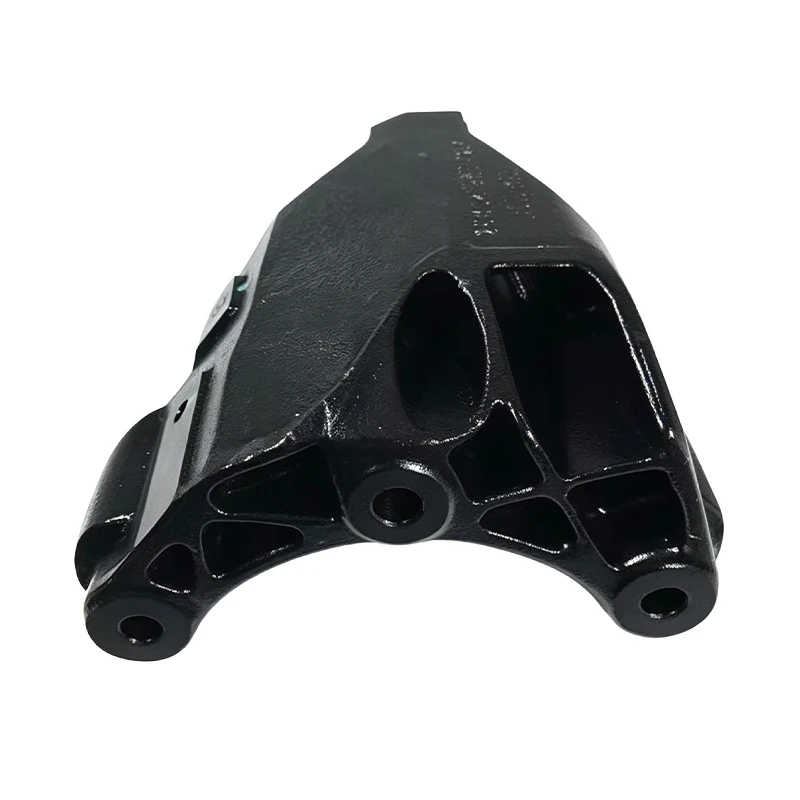

Control Arm Mounting Bracket
|
Parameter |
Specification / Range |
|
Material Options |
QT450-10 Ductile Iron, ZG270-500 Cast Steel |
|
Casting Process |
Green sand automatic molding |
|
Mechanical Testing |
Tensile test per batch (bars kept for 3 years) |
|
Coating Coverage |
100% electrophoretic coating |
|
Repeat Order Lead Time |
5 days shorter than first order |
Lower Mount for Chassis Rails
The Control Arm Mounting Bracket connects the control arm to the chassis side rail. We use QT450-10 or ZG270-500 material for the bracket. The bracket is exposed to loads from different directions during operation. We add reinforcing ribs that are cast as one piece with the main body, so no additional welding is required. Our automatic green sand molding line maintains consistent mold hardness during production. This process helps us produce a stable product from batch to batch. The part serves as an important link in the suspension system. We pay close attention to each casting detail to support long service life.
Tensile Testing and Full Coating
Our laboratory has a universal testing machine, and we perform tensile tests on every batch. The tensile strength must meet or exceed the specified material grade. If the test result falls below the required value, we adjust the melting process before continuing production. We keep tensile test bars for three years to support full traceability. Our electrophoretic coating line monitors the solids content every day. We ensure 100% coating coverage on every Control Arm Mounting Bracket, with no exposed areas. The coating process includes pretreatment steps such as degreasing and phosphating. These steps improve coating adhesion to the metal surface.
Repeat Order Savings and Combined Shipping
We offer faster delivery for repeat orders because the tooling is already available. Our production scheduler gives these orders priority, which can shorten the first delivery time by five days. We can also combine different products in one container to help reduce your freight costs. Our foreign trade team prepares the required customs documents for you. This makes the Control Arm Mounting Bracket ordering process easier to manage. We have supplied this bracket for multiple SUV projects. The parts perform well under both on-road and off-road conditions. We are ready to support your durability requirements.
